Foldable pull hoods for tile leveling system, 150 pieces

Folding pull hoods - a new innovation in the tile leveling system world

Scope of delivery:

• 150 folding draft hoods in a box

Characteristics:

The folding draw hoods are designed to speed up the leveling process. Long periods of turning the draft hoods up and down are a thing of the past with the folding draft hoods.
Thanks to the simple click function, the pull hood can be clicked onto the installed threaded tabs in a matter of seconds. Only 1 - 2 turns are necessary to level the tiles.

Advantages of folding draft hoods:

• You save valuable working time with a perfect leveling result
• The folding pull hoods are suitable for all base, T-piece and cross-threaded brackets
• For tiles with material thicknesses of 3 - 18 mm
• No additional tools required
• For a perfectly laid tiled floor

Leveling system application with the folding pull hoods

1. Step: Make sure the surface is perfectly prepared; it must be absolutely flat. Pull up the adhesive bed and place the first tile in the adhesive (for large formats we recommend using the “buttering-floating method” )
2. Step: Now place z. B. place a base threaded tab under the first tile so that half of the base plate is under the tile. Depending on the tile format, an additional base thread tab can be inserted. Now insert the next tile, the threaded tabs should now be fixed in the joint between the tiles

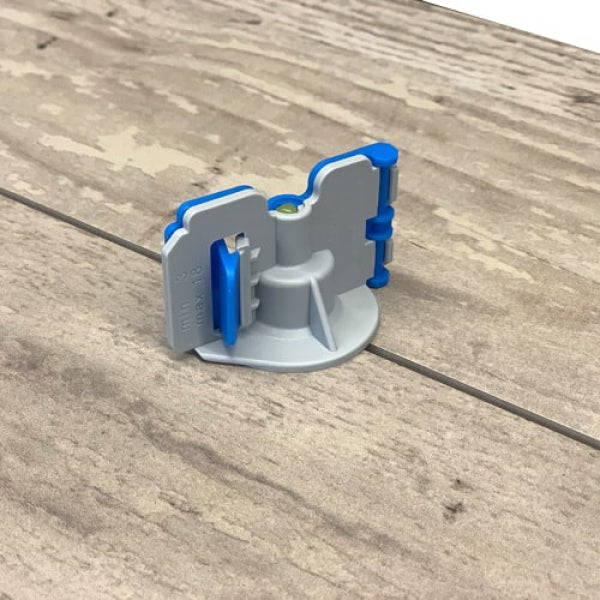

3. Take the folding draft hoods and unfold them. Place the draw hoods around the protruding thread of the base tabs and close the draw hood until it clicks into place. Now you only need one or two turns to level the tiles
4. Then allow the adhesive to harden completely before removing the pull hoods and threaded tabs again. To do this, the pull hoods can simply be opened up (and reused), and the threaded tab projections are broken off in the direction of the joint

You can now grout your tiled floor as usual.

Technical data:

• PU: 150 pieces
• Material thickness: 3 - 18 mm
• Suitable for the tile leveling system base, T-piece and cross thread tabs
